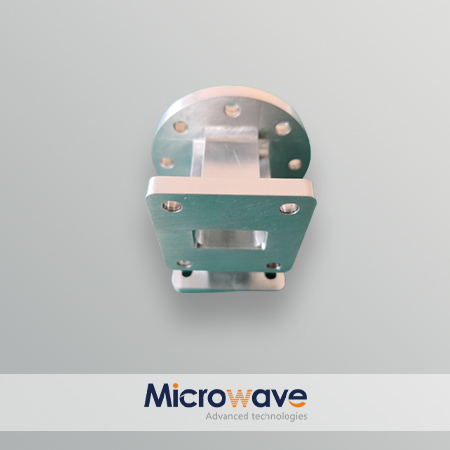

Ku Band OMT Technical Specifications

OMT is used to separate two orthogonal linearly polarized signals simultaneously.

The OMT can also support circular polarizations with a depolarizer.

Greater than 31.5 dB isolation between the two linear polarizations is achieved.

Options and accessories:

• Bend for the vertical polarization.

• Waveguide cover for unused port.

• Depolarizer for circular polarizations.

【 Feature 】 Compact, low insertion loss, excellent polarization isolation

                      Mobile satellite communication

【 Test index 】

a. Working frequency band: 10.7-12.75GHz; 13.75 to 14.5 GHz

b. Passband standing wave ratio: < 1.25

c. Insertion loss: < 0.2dB

d. Polarization isolation: > 25dB

e. Interface: WR75
