As a dedicated supplier of Ka Band Isolators, I often encounter inquiries from customers regarding the reparability of damaged isolators. This topic is not only of great interest to those in the field of RF and microwave technology but also crucial for businesses aiming to optimize their equipment lifespan and reduce costs. In this blog post, I will delve into the intricacies of Ka Band Isolators, explore the potential causes of damage, and discuss whether a damaged Ka Band Isolator can indeed be repaired.
Understanding Ka Band Isolators
Ka Band Isolators are passive microwave devices that allow the flow of microwave signals in one direction while blocking them in the opposite direction. They are essential components in various microwave systems, including satellite communication, radar systems, and wireless communication networks. These isolators play a vital role in protecting sensitive equipment from reflected signals, which can cause interference, damage, or performance degradation.
The operation of a Ka Band Isolator is based on the principle of non - reciprocity, which is achieved through the use of ferrite materials. When a microwave signal enters the isolator, it passes through the ferrite material, which is magnetized by a permanent magnet. The magnetization of the ferrite material causes the signal to propagate in a specific direction, while signals traveling in the opposite direction are absorbed or dissipated as heat.
Common Causes of Damage
Before discussing the reparability of a damaged Ka Band Isolator, it is important to understand the common causes of damage. Some of the most frequent reasons for isolator failure include:
Overpowering
One of the primary causes of damage to Ka Band Isolators is overpowering. If the input power exceeds the isolator's specified power rating, it can cause the ferrite material to overheat, leading to permanent damage. Overpowering can occur due to various reasons, such as improper system design, malfunctioning amplifiers, or sudden power surges.
Environmental Factors
Ka Band Isolators are sensitive to environmental conditions, such as temperature, humidity, and vibration. Extreme temperatures can cause the ferrite material to expand or contract, leading to mechanical stress and potential damage. High humidity can also cause corrosion of the isolator's components, while excessive vibration can loosen or damage internal connections.
Manufacturing Defects
Although rare, manufacturing defects can also lead to isolator failure. These defects can include improper assembly, faulty materials, or incorrect magnetic field alignment. In some cases, manufacturing defects may not become apparent until the isolator has been in use for a certain period of time.
Can a Damaged Ka Band Isolator be Repaired?
The answer to whether a damaged Ka Band Isolator can be repaired depends on several factors, including the extent of the damage, the cause of the damage, and the availability of replacement parts.
Minor Damage
In some cases, minor damage to a Ka Band Isolator can be repaired. For example, if the damage is limited to external components, such as connectors or housing, these parts can be replaced relatively easily. Additionally, if the isolator has been exposed to excessive humidity, it may be possible to clean and dry the components to restore functionality.
Major Damage
However, if the damage is more severe, such as damage to the ferrite material or internal magnetic field, repair may be more challenging. In some cases, it may be necessary to replace the entire ferrite assembly, which can be a complex and costly process. Additionally, if the damage is due to a manufacturing defect, it may be more cost - effective to replace the isolator with a new one.
Repair Process
If a damaged Ka Band Isolator is deemed repairable, the repair process typically involves the following steps:
Inspection
The first step in the repair process is to conduct a thorough inspection of the isolator. This inspection will help to identify the cause and extent of the damage. During the inspection, the isolator may be disassembled to access internal components, and various testing methods may be used to evaluate its performance.
Component Replacement
Once the damaged components have been identified, they will need to be replaced. This may involve replacing connectors, housing, ferrite material, or other internal components. It is important to use high - quality replacement parts to ensure the reliability and performance of the repaired isolator.
Testing and Calibration
After the damaged components have been replaced, the isolator will need to be tested and calibrated. This testing will ensure that the isolator is functioning properly and meets the required specifications. Various testing equipment, such as network analyzers and power meters, may be used to evaluate the isolator's performance.
Considerations for Repair
When deciding whether to repair a damaged Ka Band Isolator, there are several factors to consider:
Cost
The cost of repair is an important consideration. In some cases, the cost of repair may be comparable to or even higher than the cost of a new isolator. It is important to weigh the cost of repair against the cost of replacement, taking into account factors such as the isolator's age, performance requirements, and availability.
Time
The time required for repair is another important factor. Repairing a damaged isolator can take several days or even weeks, depending on the extent of the damage and the availability of replacement parts. If the isolator is needed urgently, it may be more practical to replace it with a new one.
Performance
It is also important to consider the performance of the repaired isolator. In some cases, the performance of a repaired isolator may not be as good as that of a new isolator. This can be due to factors such as the quality of the replacement parts, the accuracy of the repair process, or the age of the isolator.
Related Products

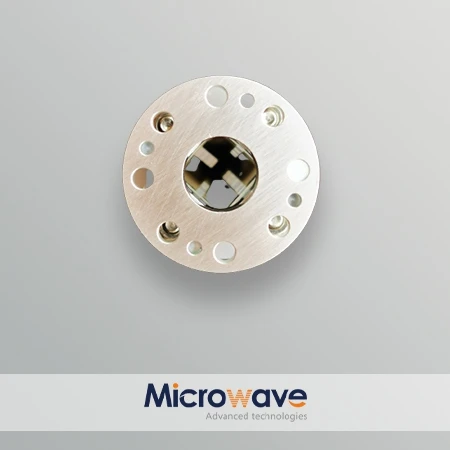

As a Ka Band Isolator supplier, we also offer a range of related products that may be of interest to our customers. These products include Waveguide To Coaxial Adapters, which are used to convert between waveguide and coaxial transmission lines, KU Band Waveguide Isolator 120W, which are designed for use in the KU band frequency range, and Ka Band Circulator, which are similar to isolators but allow signals to flow in multiple directions.
Conclusion
In conclusion, whether a damaged Ka Band Isolator can be repaired depends on the extent of the damage, the cause of the damage, and the availability of replacement parts. While minor damage can often be repaired, major damage may require the replacement of the entire isolator. When deciding whether to repair or replace a damaged isolator, it is important to consider factors such as cost, time, and performance.
If you are in need of Ka Band Isolators or related products, or if you have any questions about the reparability of damaged isolators, please feel free to contact us. Our team of experts is always ready to assist you with your RF and microwave needs.
References
- Pozar, D. M. (2011). Microwave Engineering (4th ed.). Wiley.
- Collin, R. E. (2001). Foundations for Microwave Engineering (2nd ed.). McGraw - Hill.
